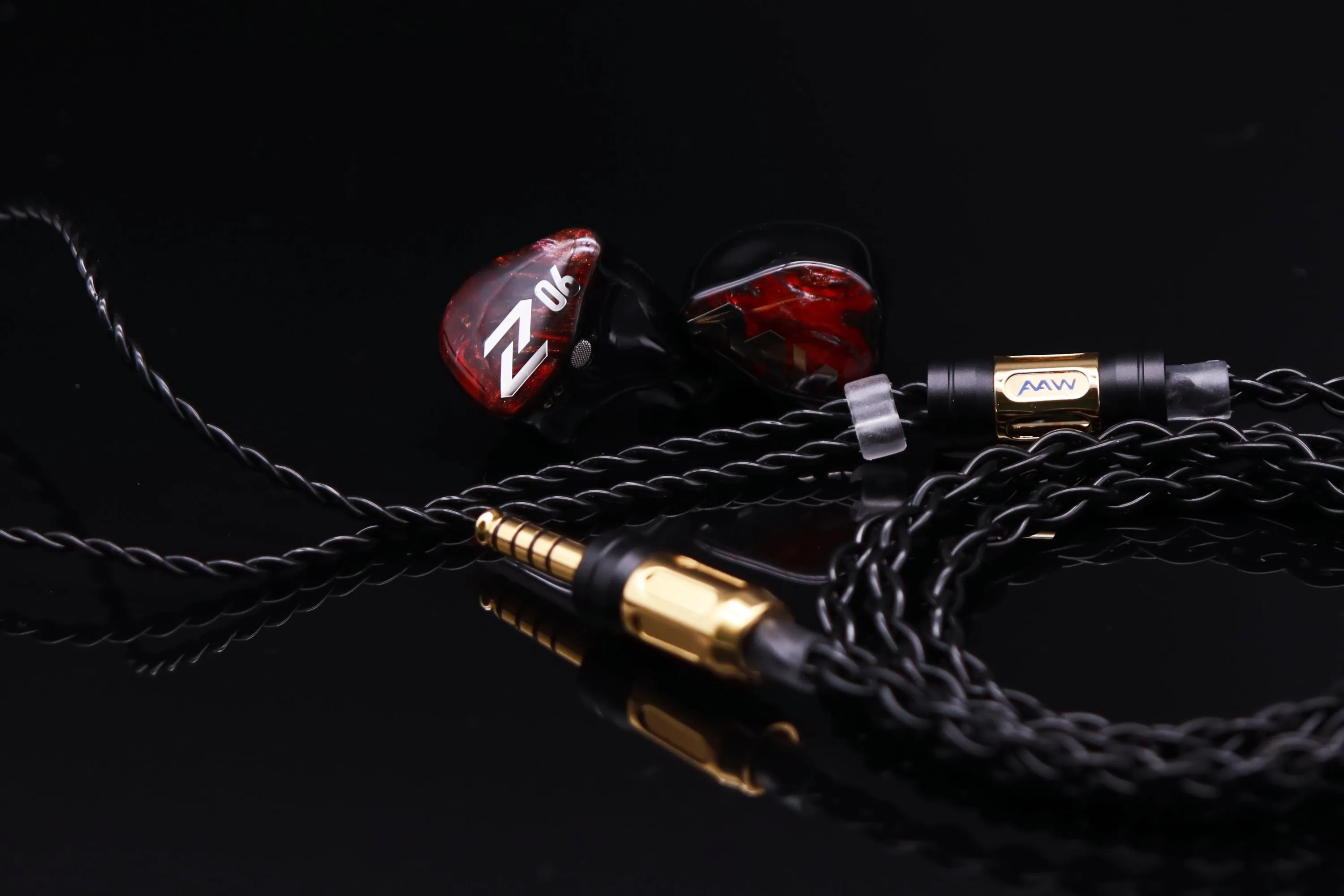

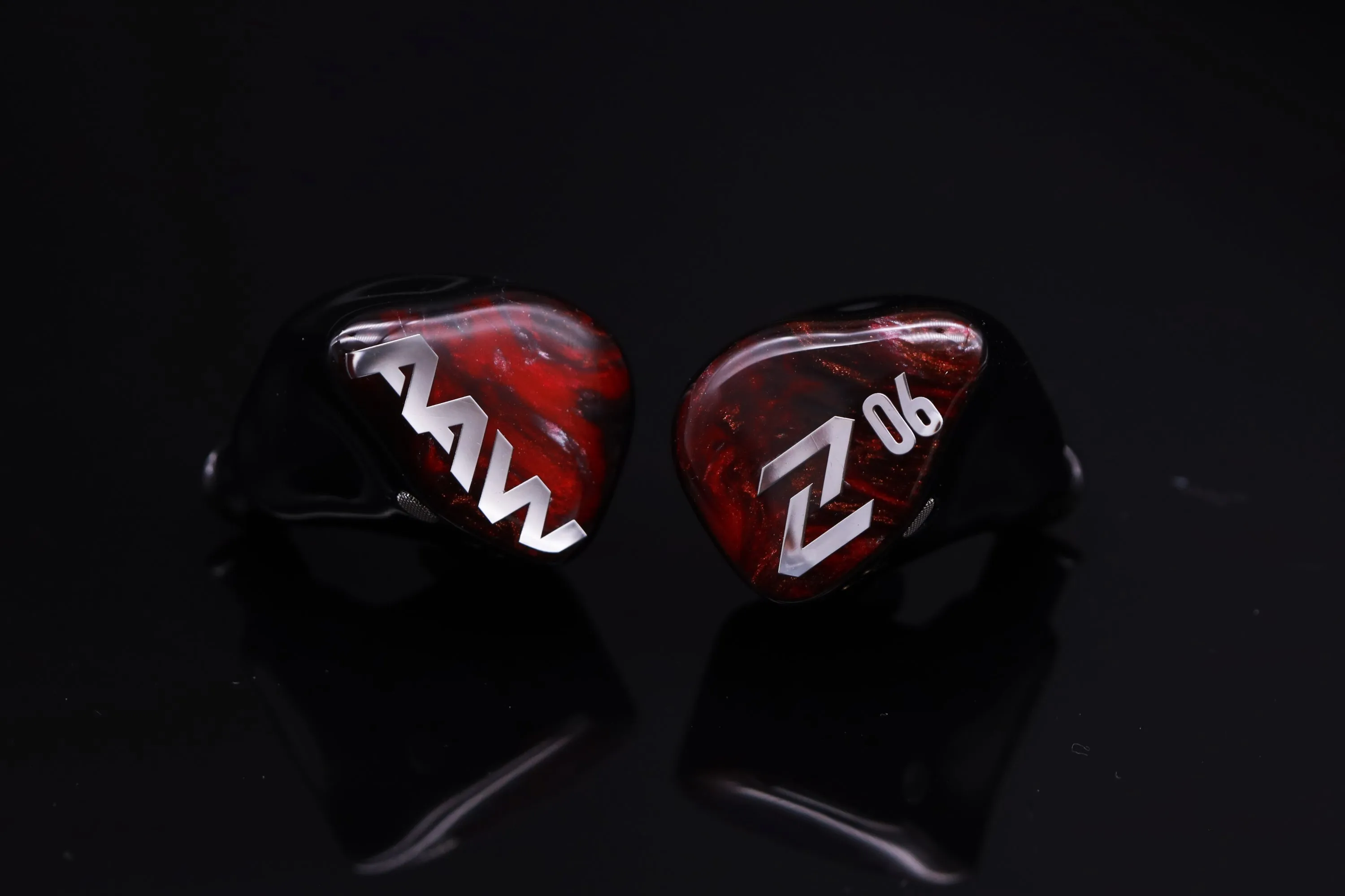

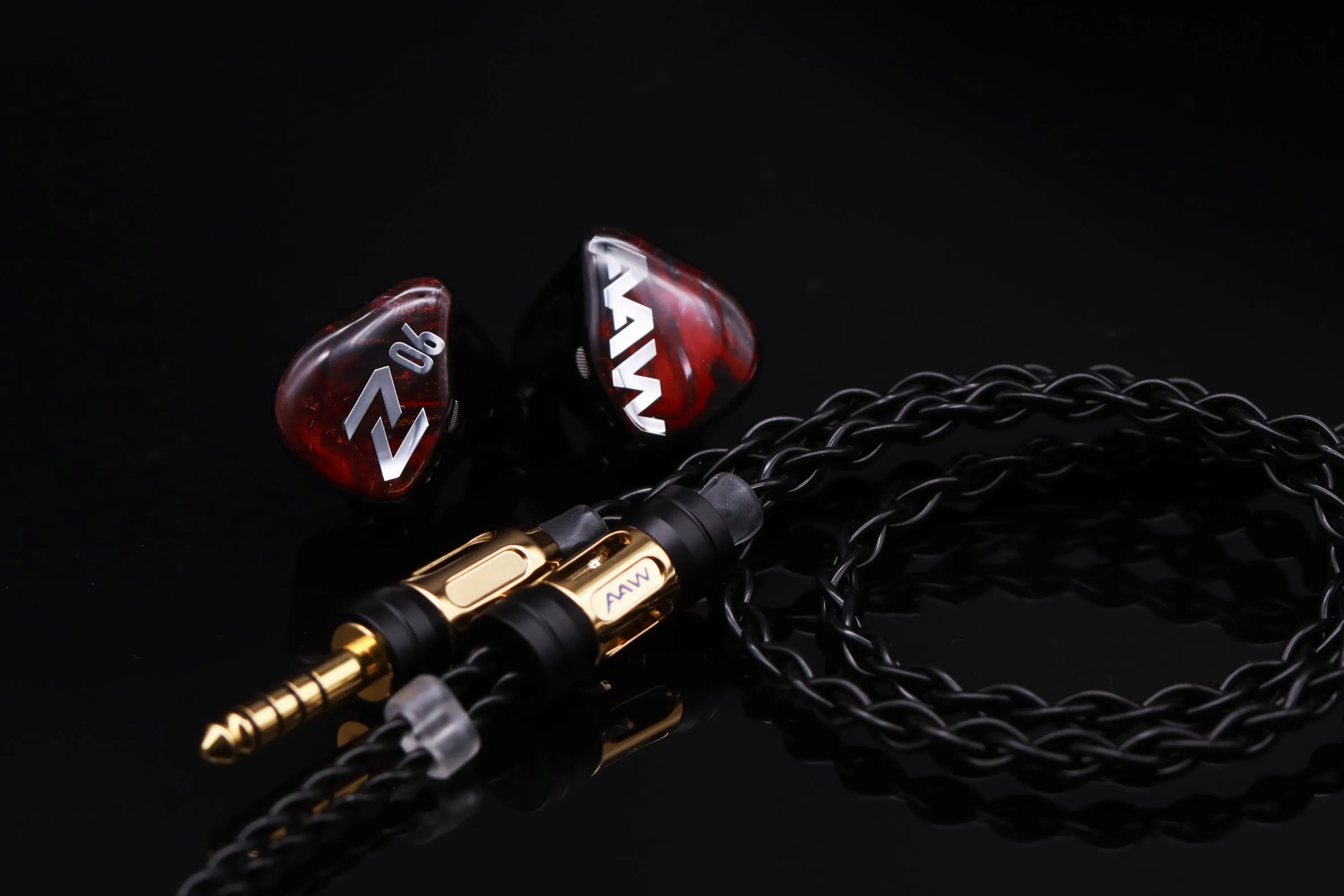

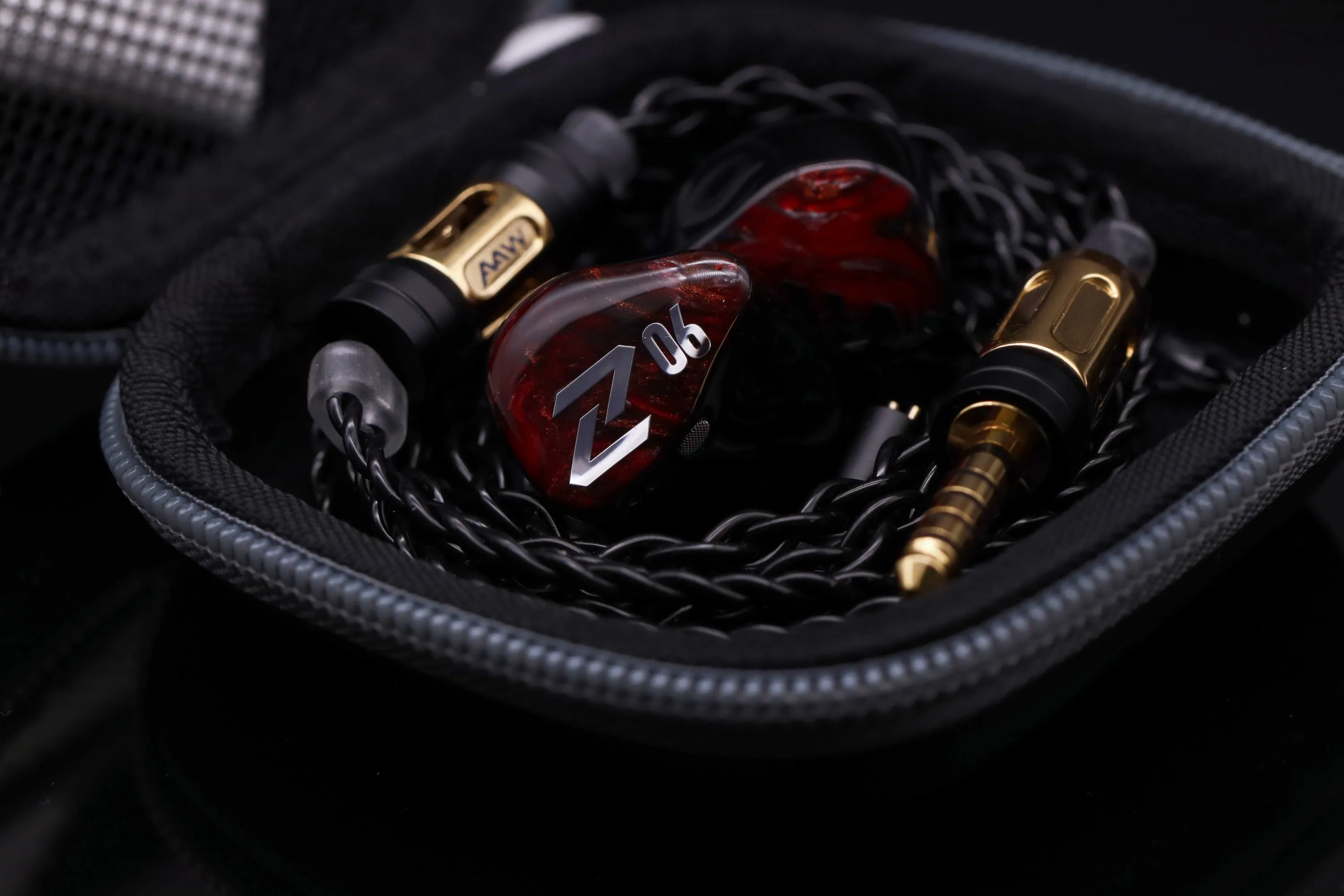

Name: Z06 Custom In-Ear Monitor
SKU: 624932

Product Details ＋

The Z06 represents AAW’s innovative approach to Hybrid In-ear Monitor design through the introduction of the Bass-Flow Vent Pressure System. This system employs a newly tuned isobaric miniature dynamic driver pair to deliver powerful bass. The Bass-Flow Vent Pressure System effectively manages bass response, creating an expansive sound stage. Consequently, the Z06 offers a lush, vibrant, and spacious sound signature.

BassFlow Vent Pressure System

The front acoustic chamber of the isobaric bass drivers is integrated with a dedicated BassFlow Vent Pressure System, which serves dual purposes: balancing the pneumatic pressure within the user’s ear canal and controlling the airflow to the dynamic woofers. This innovative system regulates the amount of air supplied to the dynamic woofer, enabling precise control over the texture and response of the bass frequencies.
By balancing the pneumatic pressure, the BassFlow Vent Pressure System ensures a comfortable listening experience, preventing the buildup of pressure that can cause discomfort during extended listening sessions. This balance is crucial for maintaining the integrity of the sound delivered by the in-ear monitors.
Moreover, the system's ability to control airflow to the dynamic woofers allows for fine-tuning of the bass response. By adjusting the airflow, the BassFlow Vent Pressure System can manipulate the woofer's performance characteristics, such as its resonance and damping properties. This results in a bass output that is not only powerful but also rich in detail and texture.
The quantitative control refers to the system's ability to manage the volume and intensity of the bass frequencies, ensuring they are neither too overpowering nor too weak. This level of control allows the bass to be strong and impactful without overshadowing the mid and high frequencies.
Qualitative control, on the other hand, involves refining the character of the bass sound. The system can adjust parameters to enhance specific qualities of the bass, such as warmth, clarity, and punch. This ensures that the bass is not just loud, but also musically satisfying and well-integrated with the overall sound signature.

Dual Isobaric Dynamic Woofer

The 6mm dual isobaric woofer in the Z06 is engineered to provide exceptional bass performance while maintaining overall audio balance. This advanced woofer system features dual diaphragms and high-strength neodymium magnets, which work together to create powerful, precise sound. The dual diaphragm setup ensures that the movement of the woofers is tightly controlled, reducing unwanted distortions and enhancing the clarity of the bass.
The isobaric design, where two drivers are positioned in close proximity and work in tandem, plays a crucial role in minimizing low-range Total Harmonic Distortion (THD). This configuration allows the woofer system to produce deeper and cleaner bass frequencies without the typical distortion found in single-driver designs. The increased efficiency of this setup also results in higher sound pressure output, meaning the Z06 can deliver more impactful and dynamic bass.
To further refine the audio output, the Z06 employs advanced acoustic filtering techniques. These techniques ensure that the woofer operates within a specific frequency range that minimally overlaps with the frequencies handled by the balanced armature drivers. This careful management of frequency distribution ensures that each driver focuses on its optimal range, resulting in a more accurate and detailed sound reproduction.
By isolating the bass frequencies and minimizing overlap, the Z06 avoids the common issue of bass frequencies overwhelming the midrange and treble. Instead, the bass complements the overall sound signature, providing a rich and immersive listening experience without detracting from the clarity and detail of the other frequencies.
Additionally, the use of high-strength neodymium magnets in the woofers enhances their efficiency and responsiveness. These powerful magnets allow for greater control over the diaphragm movements, leading to faster transient response and improved overall sound quality. The precise control over the woofer's operation ensures that even the most subtle nuances in the bass frequencies are accurately reproduced.
In summary, the Z06's 6mm dual isobaric woofer combines innovative design elements and advanced materials to deliver exceptional bass performance. The isobaric configuration reduces distortion and increases sound pressure output, while advanced acoustic filtering ensures seamless integration with the balanced armature drivers. This results in a well-rounded, high-fidelity audio experience where the bass is powerful yet perfectly balanced with the rest of the audio spectrum.
